LB7 DURAMAX S400/STOCK TWIN (COMPOUND) TURBO KIT - WCFAB

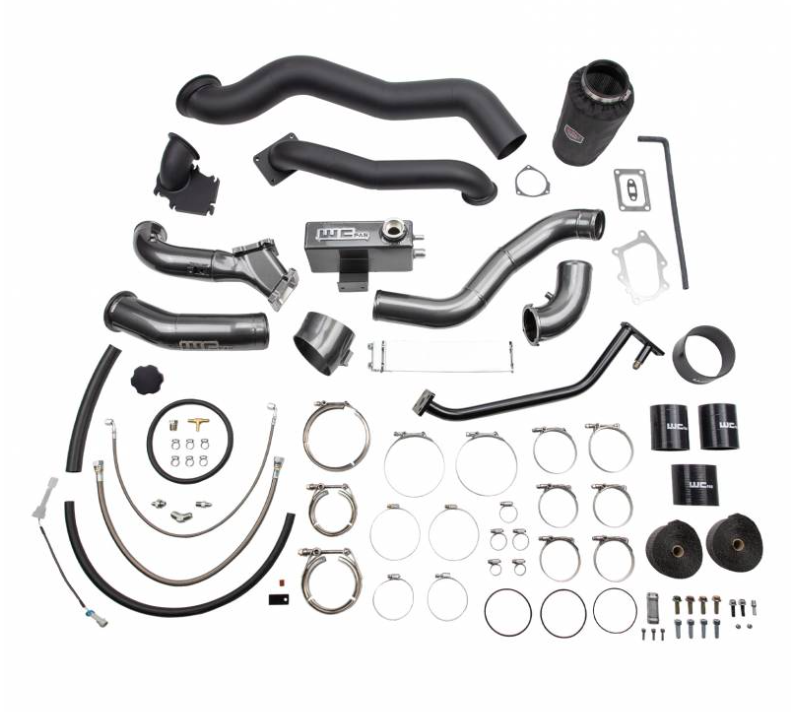

Includes:

- 5" Intake
- Dry Air Filter
- Outerwears Pre-Filter cover
- 3.5" Cold Side Charge Pipe
- 3.5" Turbo Inlet Horn
- 3" One Piece Y-bridge with HD Bead roll end
- 3" Cold Side Intercooler Pipe
- 14g Aluminum Construction
- Powder Coating
- Silicone Boots
- T-Bolt Clamps
- V-Band Clamps
- 3" Steel Turbo Hot Side Cross Over Pipe
- 4" Steel Turbo Down Pipe
- Heat Wrap & Clamps
- High Temp Black Ceramic Coating on Hot Side Pipes
- Atmosphere Turbo Pedestal with Built in Oil Return Fitting
- Coolant Overflow Tank with Hoses, Fittings, & Low Coolant Sensor
- Stainless steel oil feed and drain lines with fittings

2001-2004 LB7 Duramax S400/Stock Compound Turbo Kit. 1000 RWHP capable depending upon turbo and fuel system modifications. Recommended for daily driver work trucks and tow rigs looking for increased horsepower, better fuel mileage, and superior EGT control with stock-like turbo spool characteristics.

Recommended Combinations:
S475 / Stock IHI Turbo - Up to 750 RWHP with Supporting Modifications - Best Turbo Spool, performs well on stock fuel setups. WCFab 750 Built Allison transmission recommended.

S480 / Stock IHI Turbo - 800+ RWHP Capable with Supporting Modifications - Better top end performance that sacrifices a bit of spool on the low end compared to an S475/stock setup. WCFab 750+ Built Allison transmission recommended.

S480 / Stealth 64 Drop In Turbo - 900+ RWHP Capable with Supporting Modifications - Improved top end power with moderate spool characteristics. WCFab 750+ Built Allison transmission recommended.

***This kit requires removal / relocation of the passenger side battery.***

Both turbo options we offer are 1.32 AR. If you want 1.15, please message us and we can add that option.
